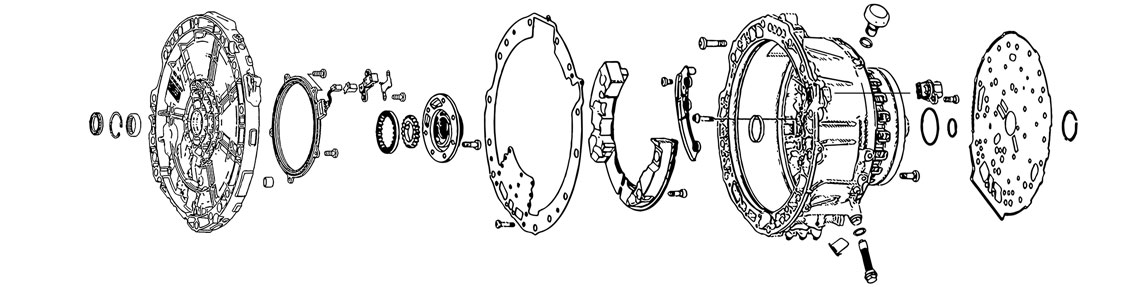

A
Flage Housing, Mechanical Pump, Position Sensor & Bell Housing

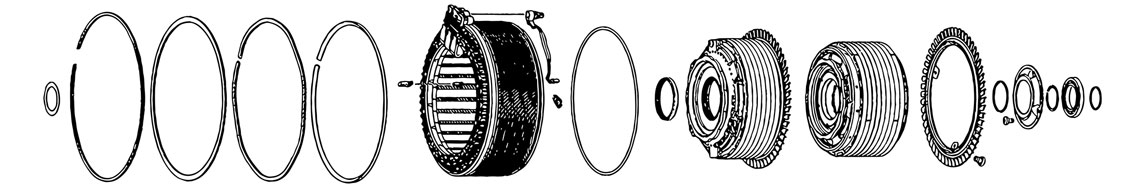

B
Electric Motor

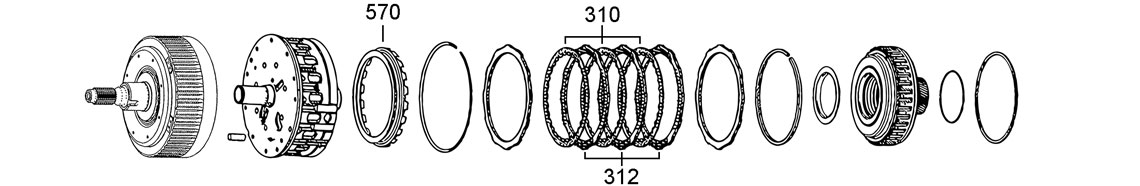

C
Sarting Clutch & B1 Brake Assembly, K1 Clutch Assembly
570
310
312

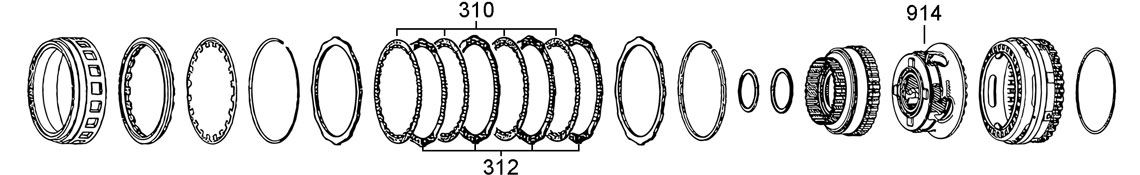

D
B3 Brake & Front Planetary Assembly
310
312
914

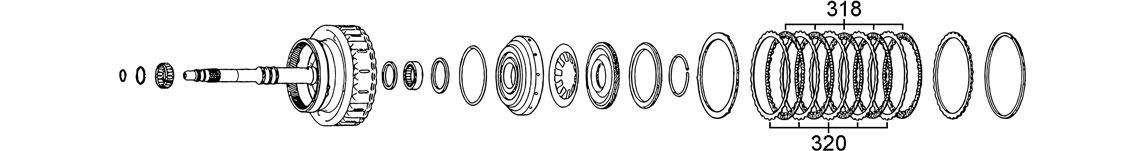

E
K2 Clutch Assembly
318
320

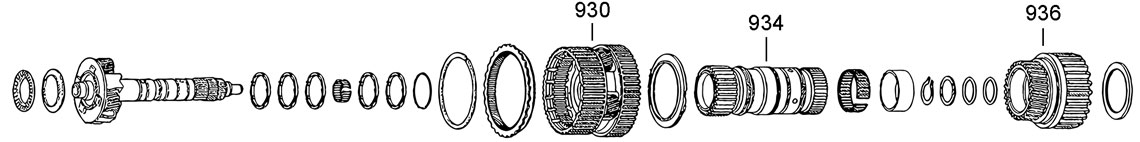

F
Middle & Rear Planetary Assembly
930
936
934
G
K3 Clutch & BR Brake Assembly
319
320
H
B2 Brake Assembly
326

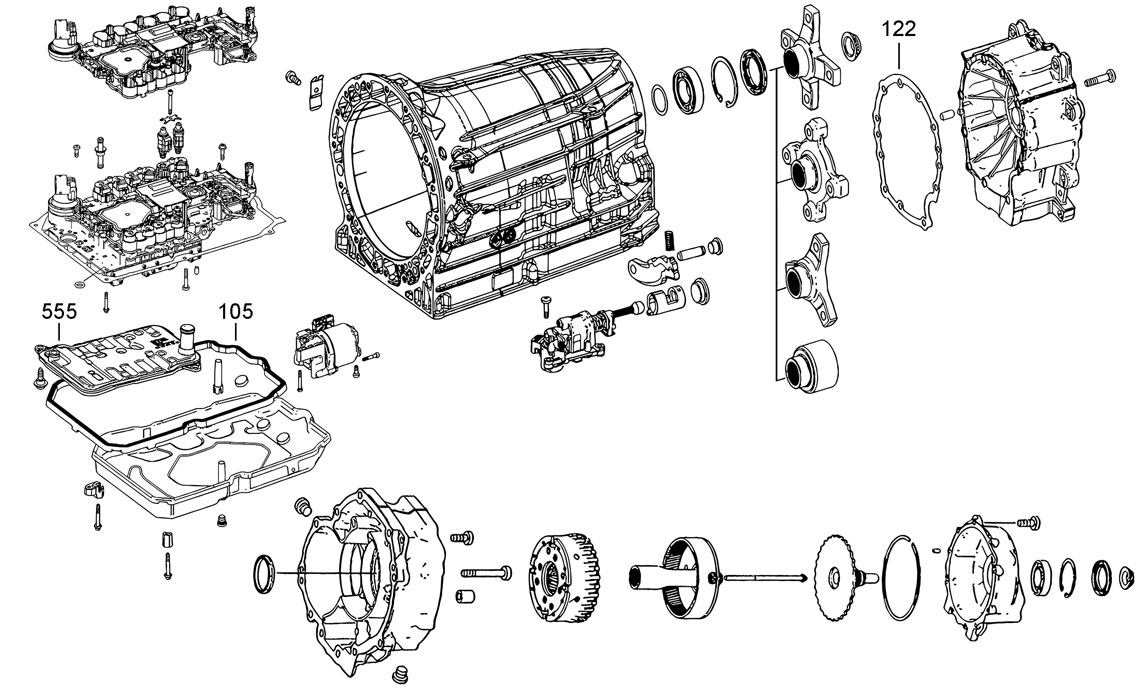

J
Main Case, Transfer Unit, Mechatronic and other Components
122
105
555
gaskets
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
105J | 89105 | Pan Gasket | 12-ON | 1 | |
122J | 89122 | Extension Housing Gasket | 12-ON | 1 |
friction plates
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
310C | 89310 | B1 Brake Friction Plate with Internal Teeth | 190 OD x 2.10mm x 36T | 12-ON | 3 |
310D | 89310 | B3 Brake Friction Plate with Internal Teeth | 190 OD x 2.10mm x 36T | 12-ON | 4 |
312C | 89312 | B1 Brake Friction Plate with External Teeth | 170 ID x 2.10mm x 18T | 12-ON | 3 |
312D | 89312 | B3 Brake Friction Plate with External Teeth | 170 ID x 2.10mm x 18T | 12-ON | 4 |
318E | 89318 | K2 Clutch Friction Plate with Internal Teeth | 167 OD x 2.10mm x 36T | 12-ON | 5 |
319G | 87319 | K3 Clutch Friction Plate with Internal Teeth | 115 OD x 2.10mm x 24T | 12-ON | 4 |
320E | 89320 | K2 Clutch Friction Plate with External Teeth | 152 ID x 2.00mm x 30T | 12-ON | 5 |
320G | 87320 | K3 Clutch Friction Plate with External Teeth | 87 ID x 2.10mm x 24T | 12-ON | 4 |
326H | 87326 | Br Brake Friction Plate | 180 OD x 1.65mm x 46T | 12-ON | 5 |
hard parts
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
914D | 89914 | Front Planet | 12-ON | 1 | |
930F | 89930 | Rear Planet | 12-ON | 1 | |
934F | 89934 | Center Sungear | 12-ON | 1 | |
936F | 89936 | Rear Sungear | 12-ON | 1 |
fluids
NO | PART # | DESCRIPTION | SIZE | YEARS | QTY |
---|---|---|---|---|---|
NI | 89999A-01 | Lifeguard 7 Plus, One Litre Bottles | 12-ON | 8 |
